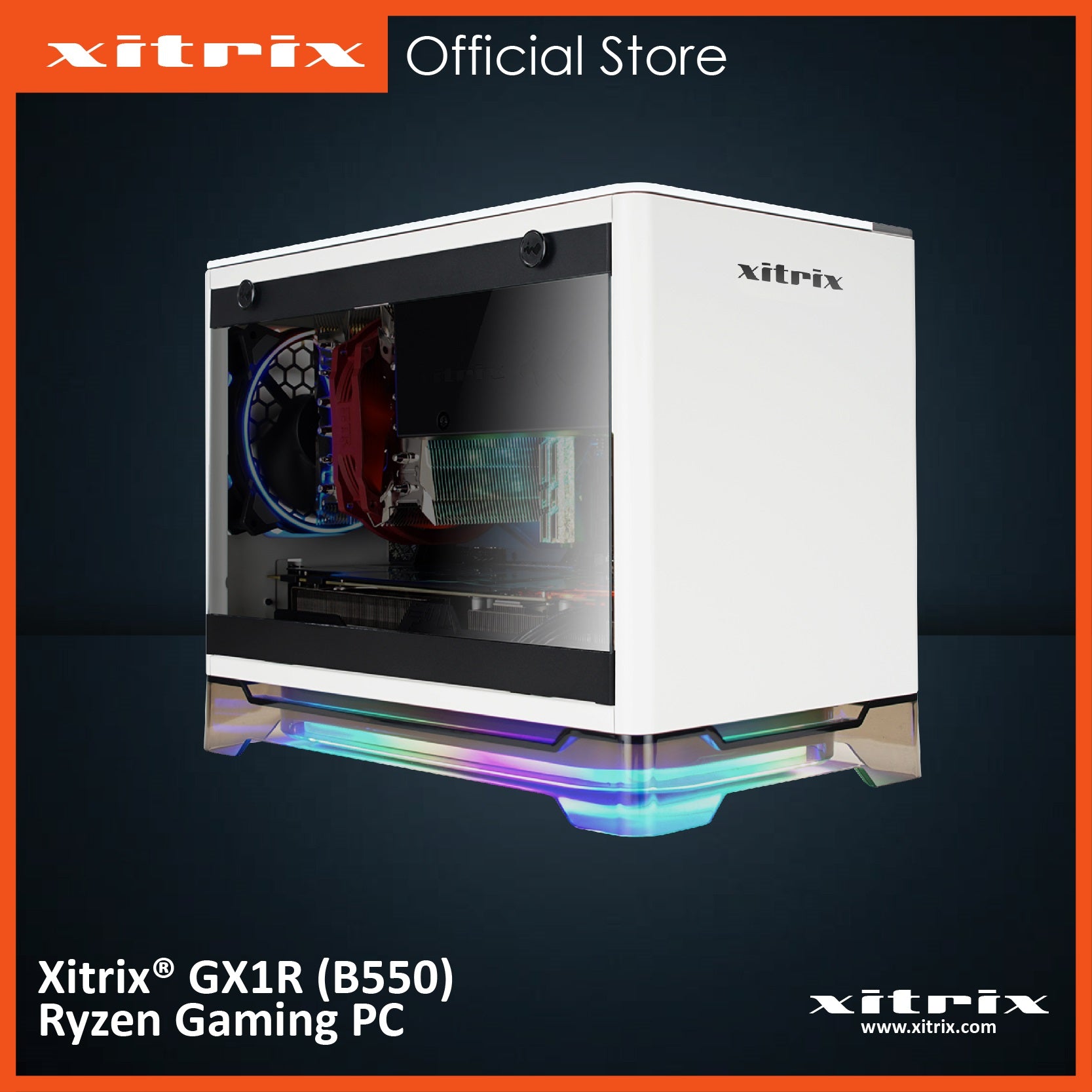

Xitrix® GX1R (B550) Ryzen Gaming PC

DeskFrame™ GX1R (B550) Ryzen Gaming PC

• AMD Ryzen™ 5 3600 Processor
• 32M Cache, up to Up to 4.2GHz
• 6 Cores and 12 Threads

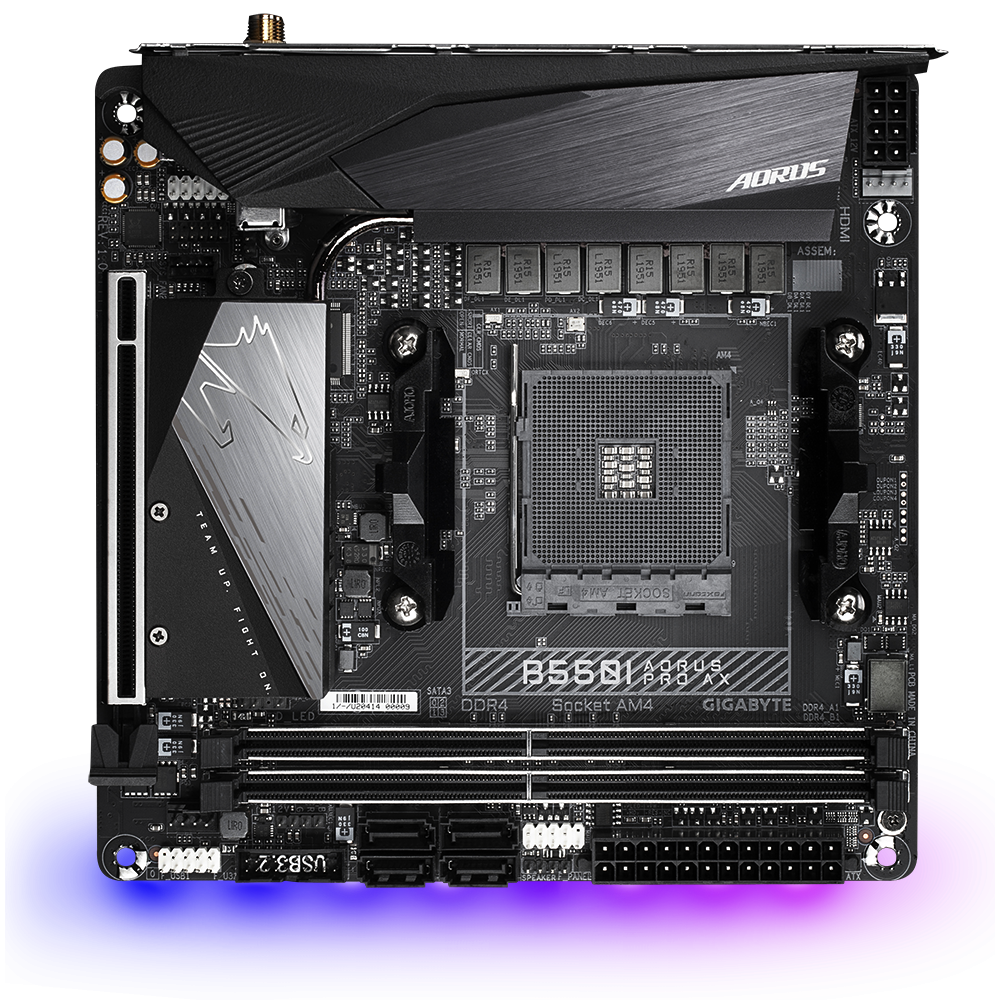

• AMD B550 Mini-ITX AORUS Motherboard
• RGB 16GB Kit (2 x 8GB) DDR4-3200 Desktop Gaming Memory
• 500GB 2.5-inch Solid State Drive
• GeForce GTX™ 1650 graphics cards
• Blazing Fast 2.5GbE LAN with Bandwidth Management
• Built in Intel® Wi-Fi 6 802.11ax + BT 5 Module
• RGB FUSION 2.0 with Addressable LED & RGB LED Strips

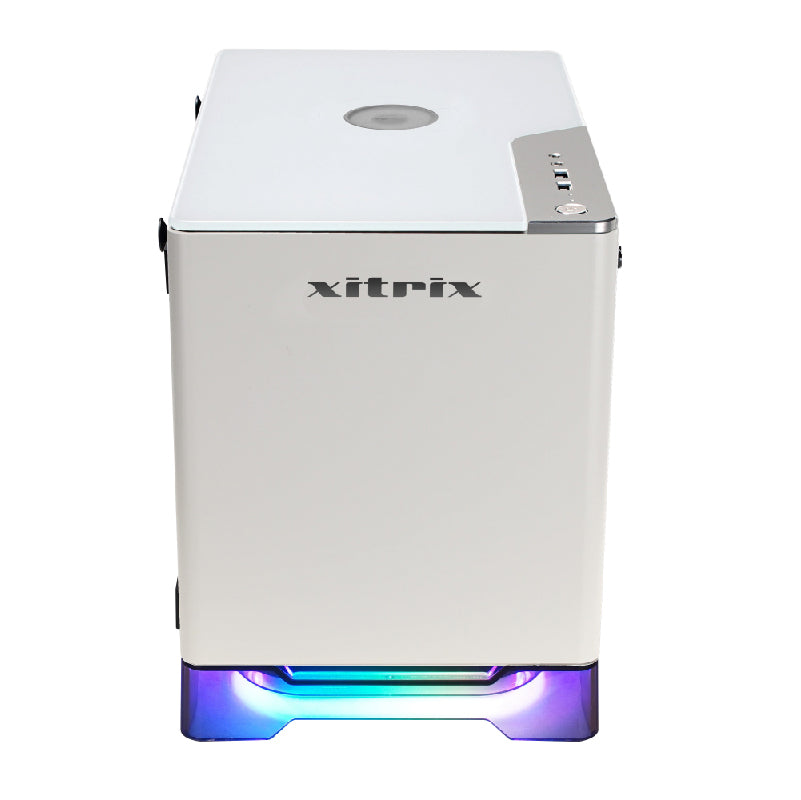

• Xitrix® GX1 Mini ITX Compact Chassis w/ Top Panel Qi 1.2 Wireless Charger
• USB 3.2 Gen2 Type-C , USB 3.2 Gen 1 ports; USB 3.2 Gen 2 Type-A port
• AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
• 3 Years Warranty on Parts and Labor
• Operating system Sold Separately

Supported Processors

AMD Ryzen™ 9 3950X Processor 64M Cache, Up to 4.7 GHz; 16 Cores and 32 Threads

AMD Ryzen™ 9 3900X Processor 64M Cache, Up to 4.6 GHz; 12 Cores and 24 Threads

AMD Ryzen™ 7 3700X Processor 32M Cache, Up to 4.4 GHz; 8 Cores and 16 Threads

AMD Ryzen™ 5 3600 Processor 32M Cache, Up to 4.2 GHz; 6 Cores and 12 Threads

Core Chipset

AMD® B550 Chipset

Operating System

Genuine 64bit Microsoft® Windows® 10; Microsoft® Windows™ 10 Professional

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to Supports DDR4 4000/4400 /3200 MHz  ; Support for up to 64 GB of system memory

Supported Graphics

GeForce RTX 2080 Super 8GB GDDR6 256-bit 3072 CUDA cores

GeForce RTX 2070 Super 8GB GDDR6 256-bit 2560 CUDA cores

GeForce RTX 2060 6GB GDDR6 192-bit 1920 CUDA cores

Slots

1 x PCI Express 3.0 x16 Slot; VGA Card Length: 320mm

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)

Hard Drive

Up to 2 x 2.5inch SATA Solid State Drive

Up to 2 x Ultra M.2 Socket SSD Solid State Drive

Support RAID Intel® Rapid Storage Technology

Audio

7.1 CH HD Audio with Content Protection; 120dB SNR DAC with Differential Amplifier

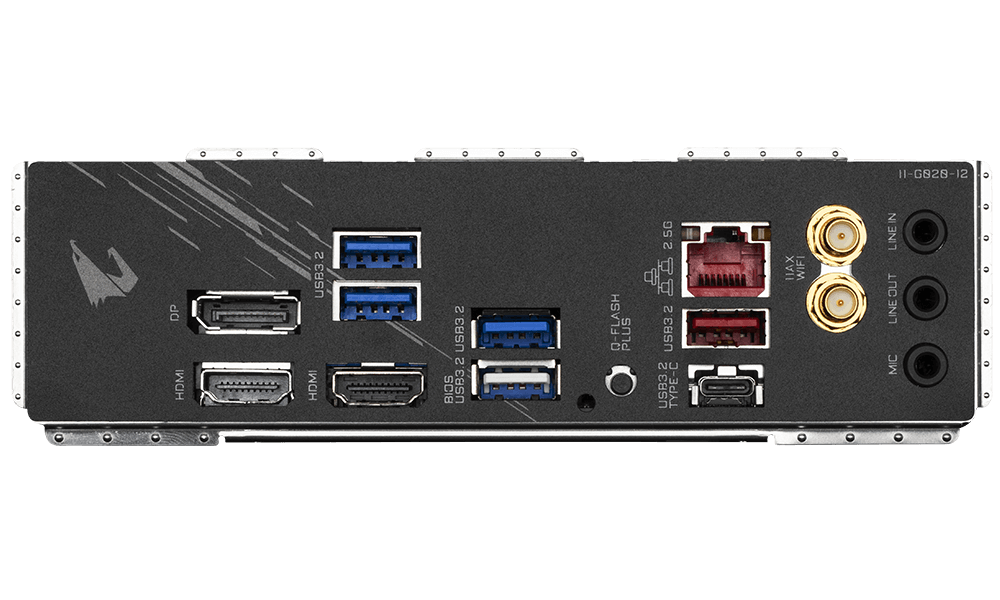

Peripheral Interfaces

1 x HDMI Port; 1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

4 x USB 3.2 Gen1 Ports (Supports ESD Protection); 2 Front USB 3.0 Ports

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone ; - 2 x Antenna Ports

LAN Support

Built in 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Built in Intel® 802.11ax WiFi Module ; Bluetooth 5.1 + High speed class II

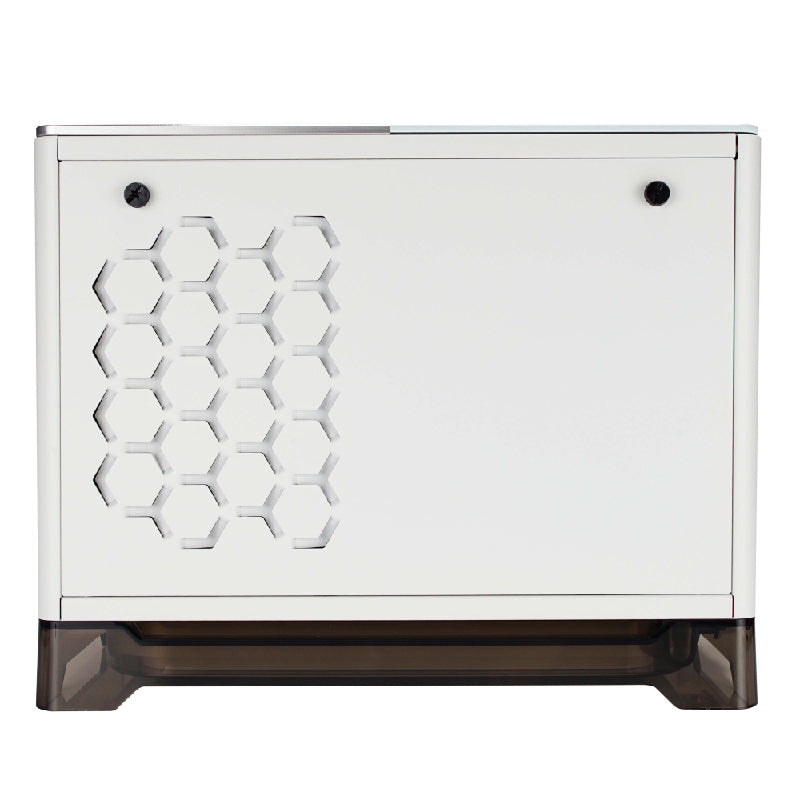

Chassis Type

Dimension

Power Supply

Xitrix GX Tool Free Mini ITX RGB Chassis ( side Tempered Glass); Qi 1.2 10W Charging Panel on top of chassis

231 x 210 x 343mm; Package: 344 x 295 x 414mm. 7.1 kg/ 15.7lbs

650 WATTS High Efficiency 80Plus Gold Power Supply

Thermal Solution Compatibility

1 x 120mm Side Fan; 1 x 120mm Rear Fan / 120mm Radiator

2 x 120mm Bottom Fan

RGB

RGB LED Header; Addressable RGB Lighting

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty Technical Support Policy; 1-Year Next Business Day On-site ServiceOptional 3 Years Next Business Day on-site
