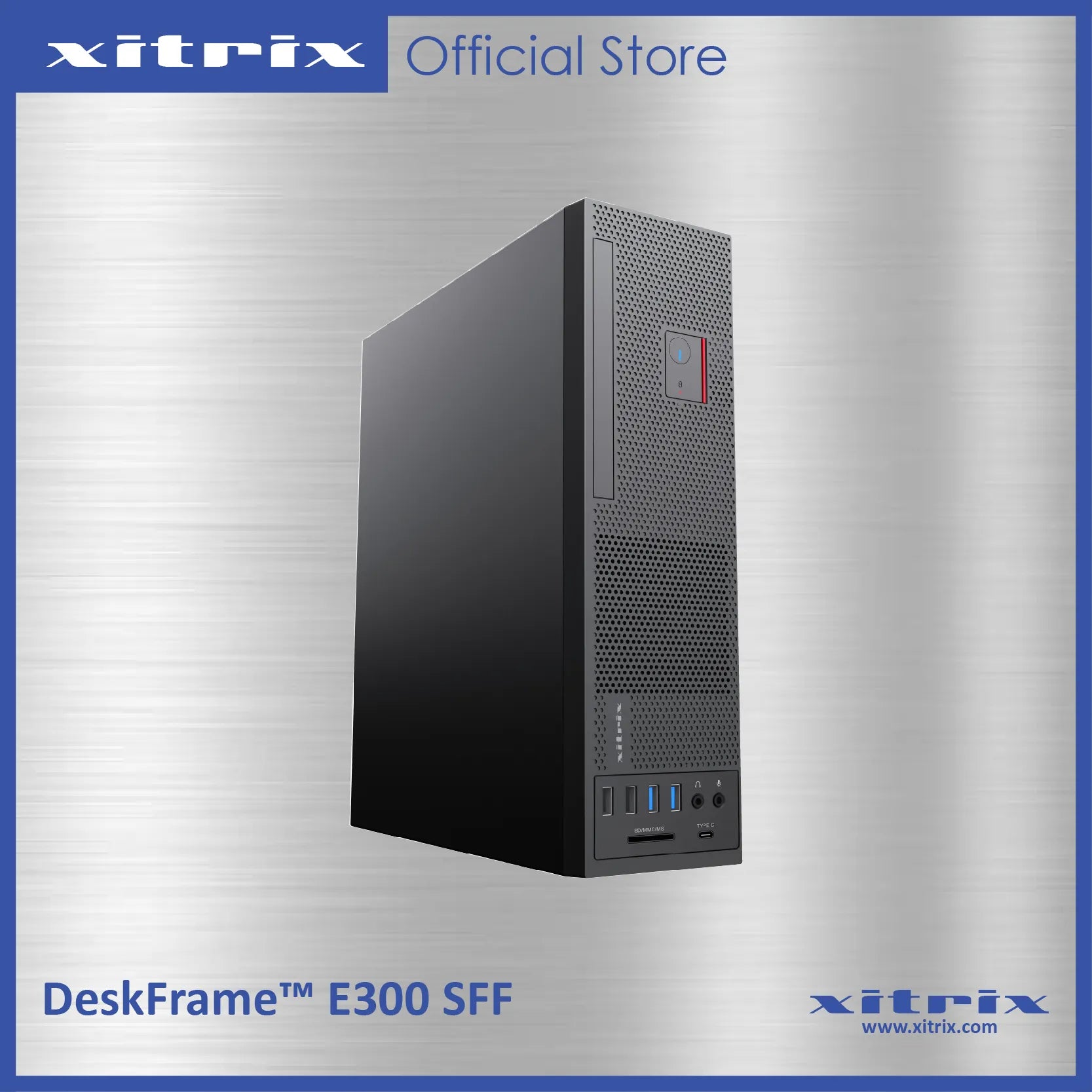

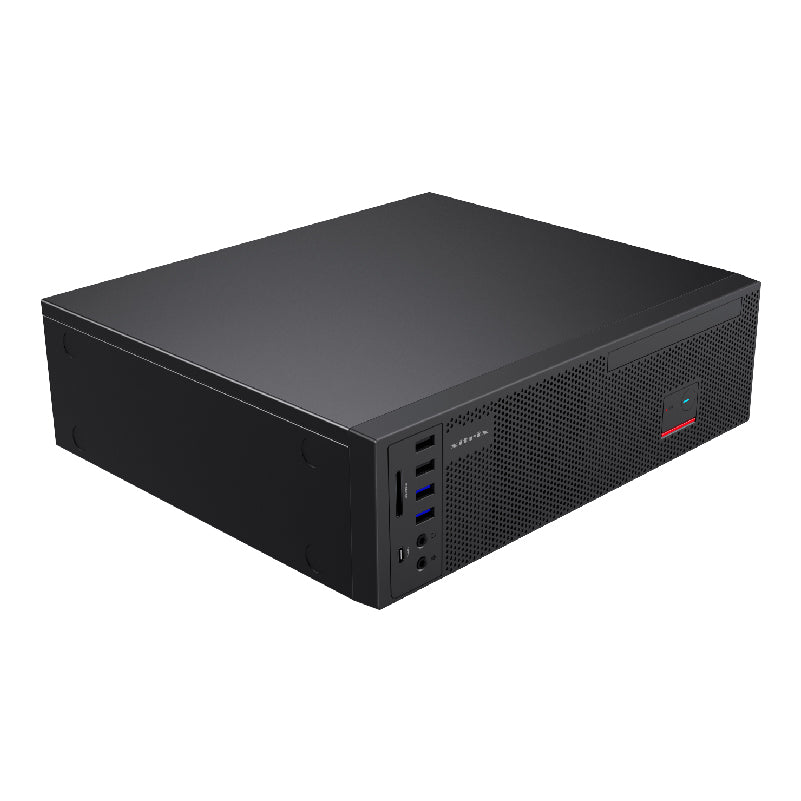

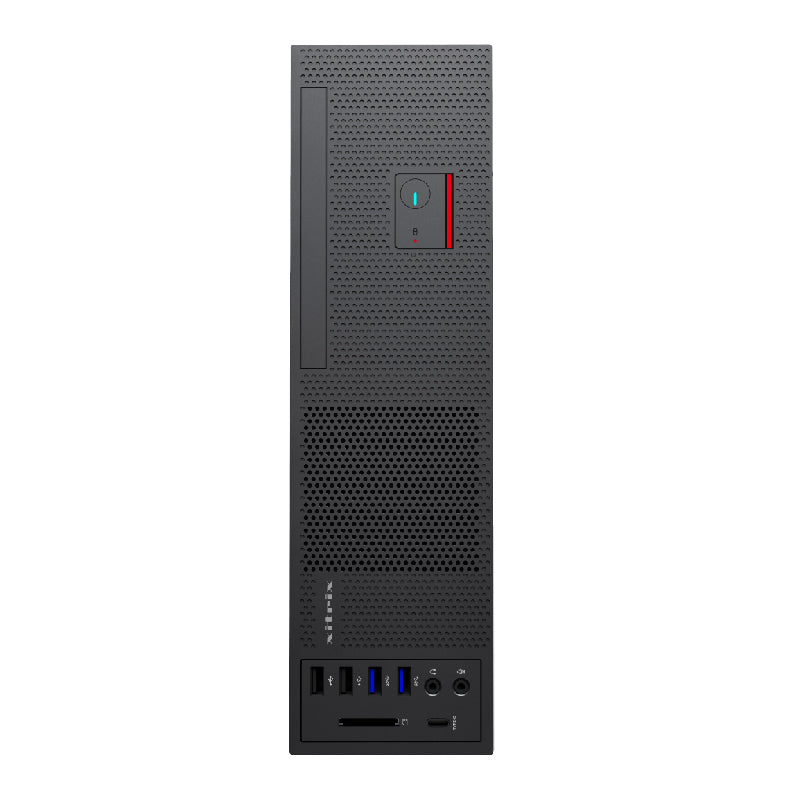

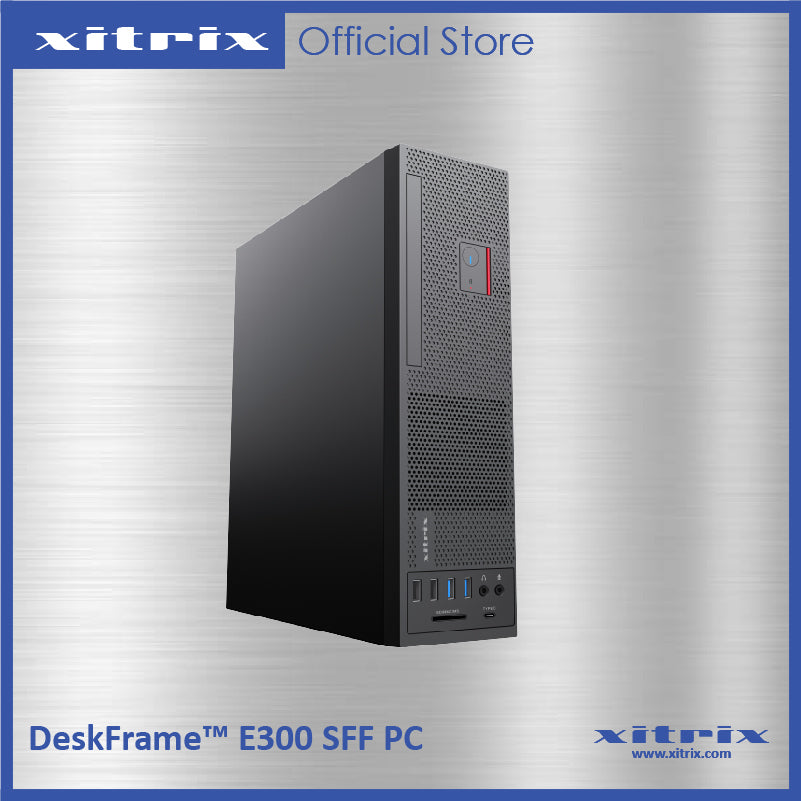

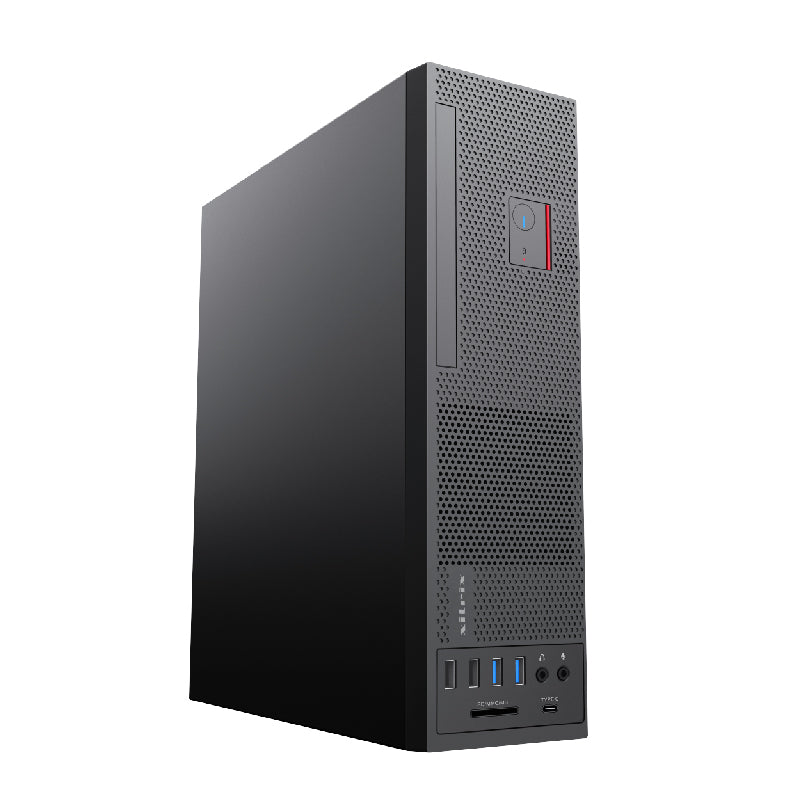

DeskFrame™ E300

• Support 10th / 11th Gen Intel® Core™ Series Processor
• Up to 64GB DDR4 System Memory
• Supports Dual Drive configuration
• Xitrix SFF Small Form Factor 8L Chassis / Xitrix CFF Compact Form Factor Chassis
• Wireless AC, with Bluetooth Module, Gigabit LAN
• Up to 6GB Discrete Video Card
• Microsoft Windows 10 Operating System


Processors

Support for 10th and 11th Gen Intel® Core™ i3, i5 and i7 processor series in an LGA1150 socket

Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor

Core Chipset

Intel® H510 Express Chipset

Operating System

Supports Microsoft Windows 10 Home and Professional; 64 bit

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to DDR4 2666/2933 MHz  ; Support for up to 64 GB of system memory

Graphics

Integrated Intel® HD graphics engine

Optional Discrete Graphic Card

Hard Drive

Up to 14TB Serial ATA 6Gb/s Hard Drive

Up to 2TB M.2 NVME SSD

Up to 4TB SATA 6Gb/s SSD Solid State Drive

Supports Dual Drive ( 3.5inch and 2.5inch)

Media Storage

Optional 8x DVD Writer Drive

Built in Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio)

Peripheral Interfaces

Two Super Speed USB 3.0 front and Two USB 3.1 Gen 1 Rear ports; Four USB 2.0 Rear Ports

VGA Port and HDMI Port; PS2Port, Audio Ports, Gigabit Network Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 3.0 slot(s); 1 X PCI Express X 1 Gen 3.0 slot(s); 1 X M.2 2260/2280 Storage Slot

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller

Optional Intel® Dual Band Wireless-AC 3165 with Dual Mode Bluetooth®4.2 BLE

Chassis Type

Dimension

Power Supply

Xitrix SFF Small Form Factor 8L Chassis
Xitrix CFF Compact Form Factor Chassis

320x 163x 285mm (15L Design)

300Watts High Efficiency 80Plus Power Supply

Pre-installed

Microsoft Office 2019 30 Days Trial , Free Factory Installed Microsoft Security Essentials

Accessories

Xitrix Multimedia Keyboard and Optical Scroll Mouse

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
  Optional 3 Years Next Business Day on-site
