Xitrix® GL2R AMD Gaming PC

Xitrix GL2R Gaming PC

• Support AMD Ryzen™ 5000 Series Desktop Processors
• Up to 64GB Memory; M.2 PCIe 4.0 SSD and 2.5” HDD
• Supports Up to GTX, RTX-30 and RTX40 Series Graphic Cards
• Gigabit LAN and 802.11ac WiFi Module
• 700watts or 1000 watts Power Supply

Supported Processors

AMD Ryzen™ 5000 Series Desktop Processors

Core Chipset

AMD B550 Chipset

Operating System

Microsoft® Windows® 10 and Windows™ 11 64Bit (Home and Professional)

System Memory

Two DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology

Support for up to 64GB of system memory; 3600MHz

Supports Extreme Memory Profile (XMP) memory modules

Supported Graphics

nVidia GeForce RTX4070Ti (12GB GDDR6X / 21 Gbps / 192-bit)

nVidia GeForce RTX-3060 (12GB GDDR6 / 15 Gbps / 192-bit)

nVidia GeForce RTX-3050 (8GB GDDR6 / 14 Gbps / 128-bit)

nVidia GeForce GTX-1650 (4GB GDDR6 / 12 Gbps / 128-bit)

Slots

1 x PCI Express x16 Gen 4 Graphic Slot

1 x M.2 Socket, supports type 2280 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) modes

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)

Hard Drive

Up to 2 x 2.5inch SATA Solid State Drive or HDD

Up to 1 x M.2 Socket SSD Solid State Drive

Audio

7.1 CH HD Audio (Realtek ALC887/897 Audio Codec); Supports Surge Protection

Peripheral Interfaces

Front / Top Ports: USB 3.2 Gen1 Type-A Ports ; USB Type C Port; 2x Audio Jack

Rear Ports:

- 2 x Antenna Ports; 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port; 1 x DisplayPort 1.4

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN Support

Integrated 10/100/1000Gigabit LAN (Supports Wake-On-LAN , Lightning/ESD Protection, Energy Efficient Ethernet 802.3az)

802.11ac WiFi Module Dual-Band (2.4/5 GHz) ; Built in High speed class II Bluetooth

Chassis Type

Dimension

Power Supply

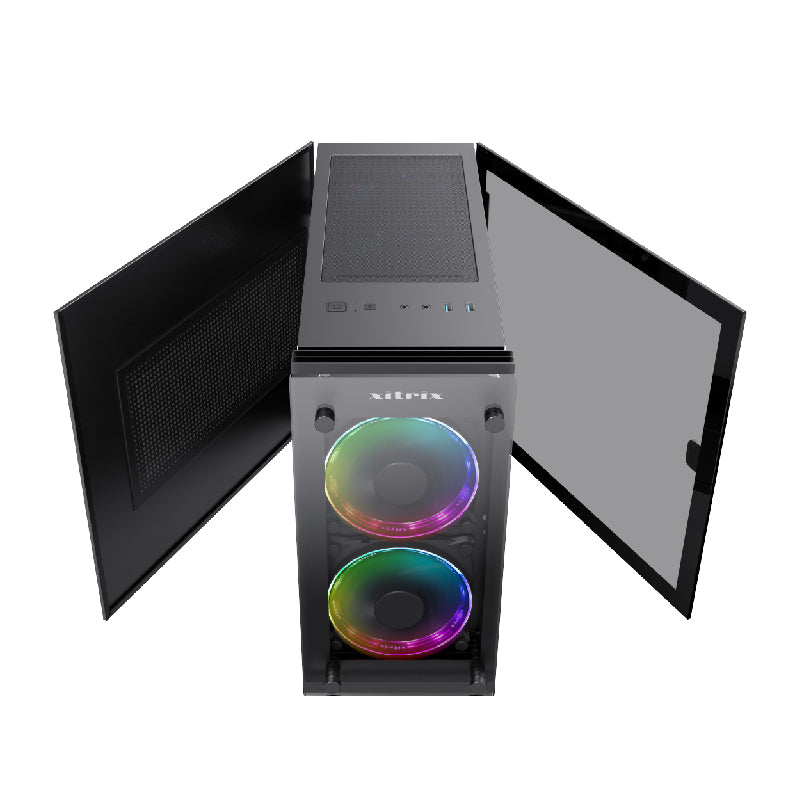

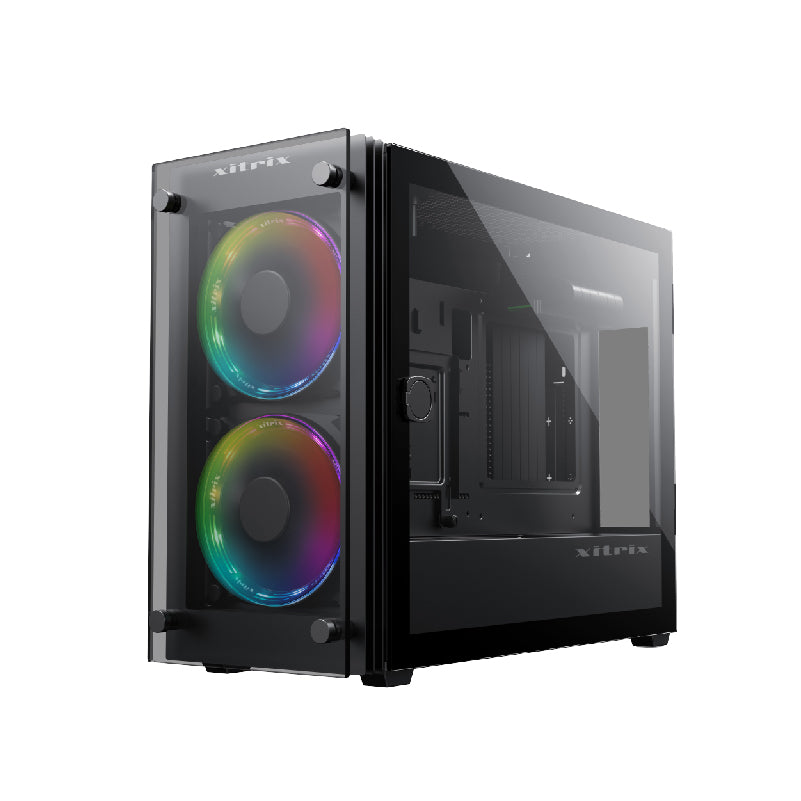

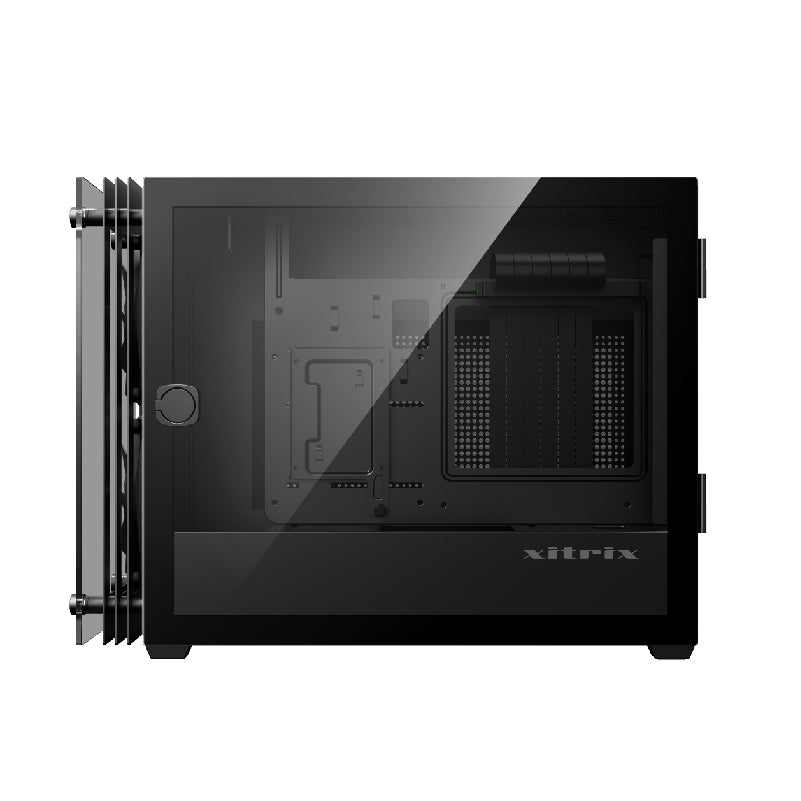

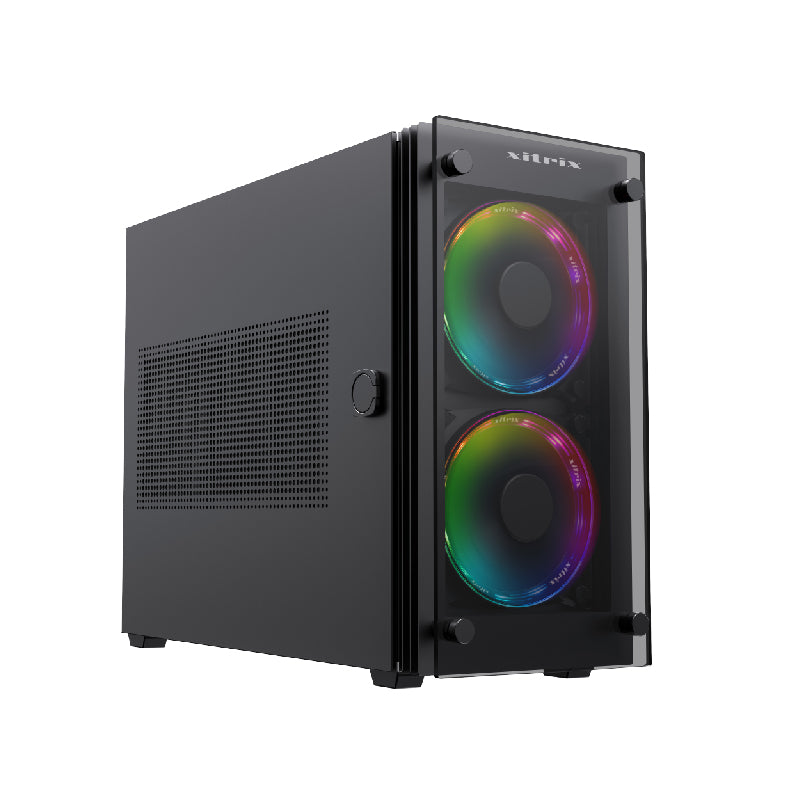

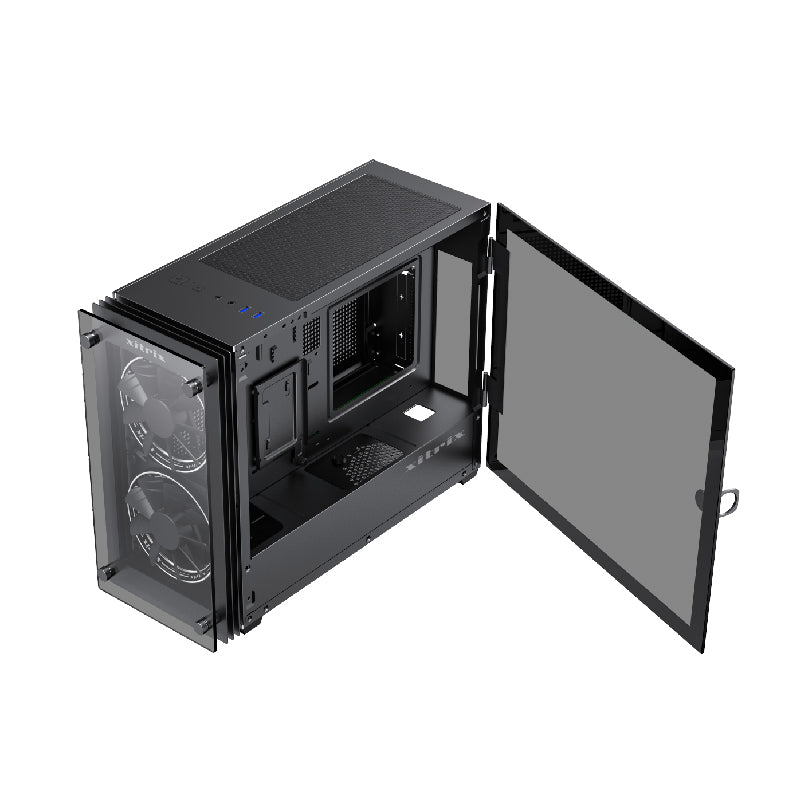

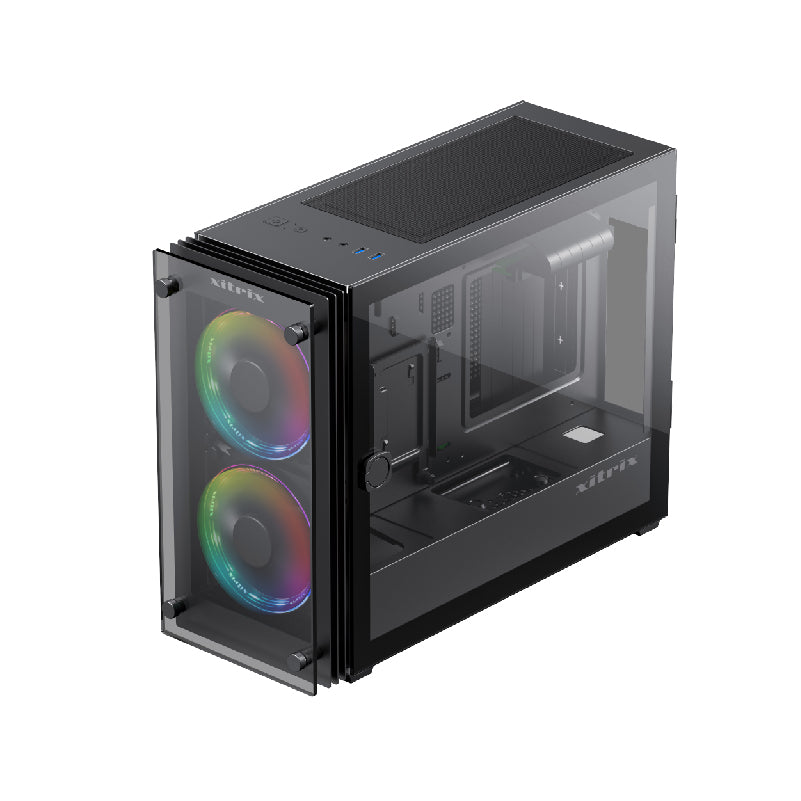

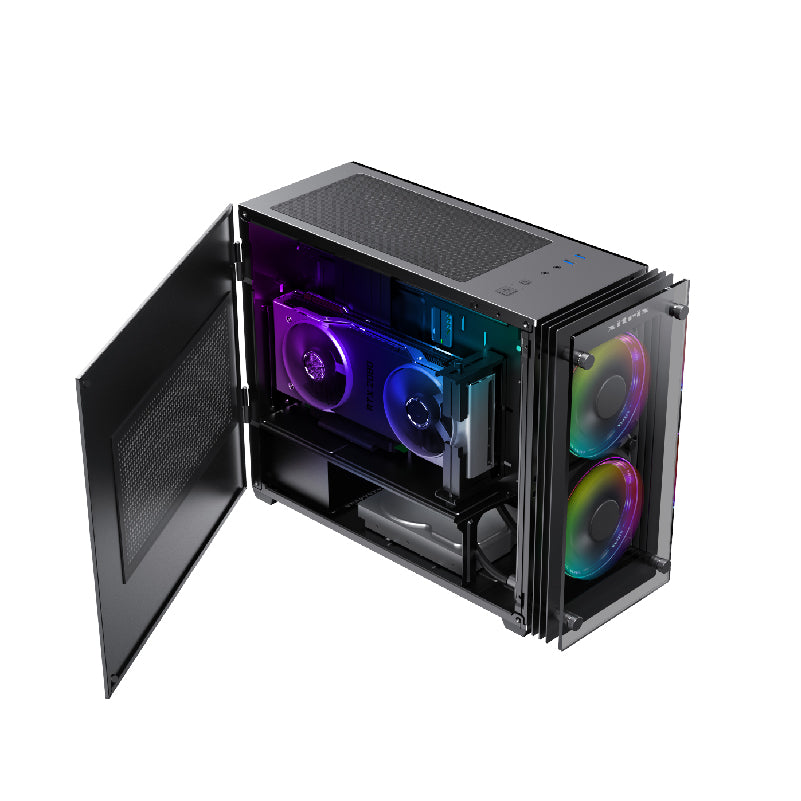

Mini ITX Chassis with  Dual Side Panel Doors design

(L)426*(W)170*(H)325mm

Standard: 700 WATTS High Efficiency 80Plus Gold Power Supply

Optional: 1000 WATTS High Efficiency 80Plus Gold Power Supply

System Cooling

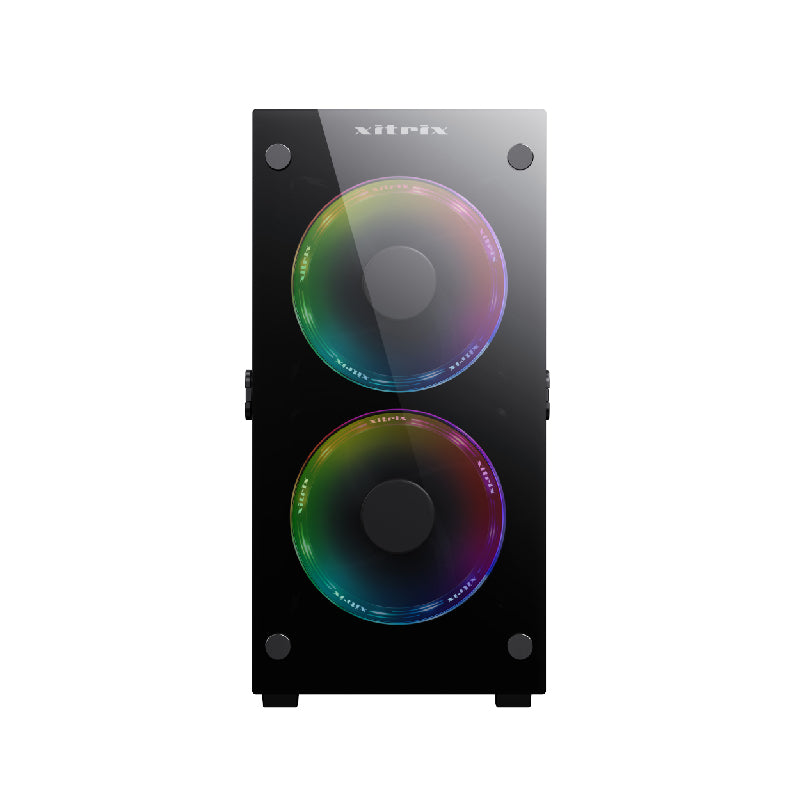

2 x 120mm RGB Cooling Fan ( Front)

2 x 120mm RGB Cooling Fan ( Top)

Supports 240mm AIO RGB Liquid Cooling System

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site

 Standard Warranty and Service Offerings

3 Years Warranty on Parts and Labor
