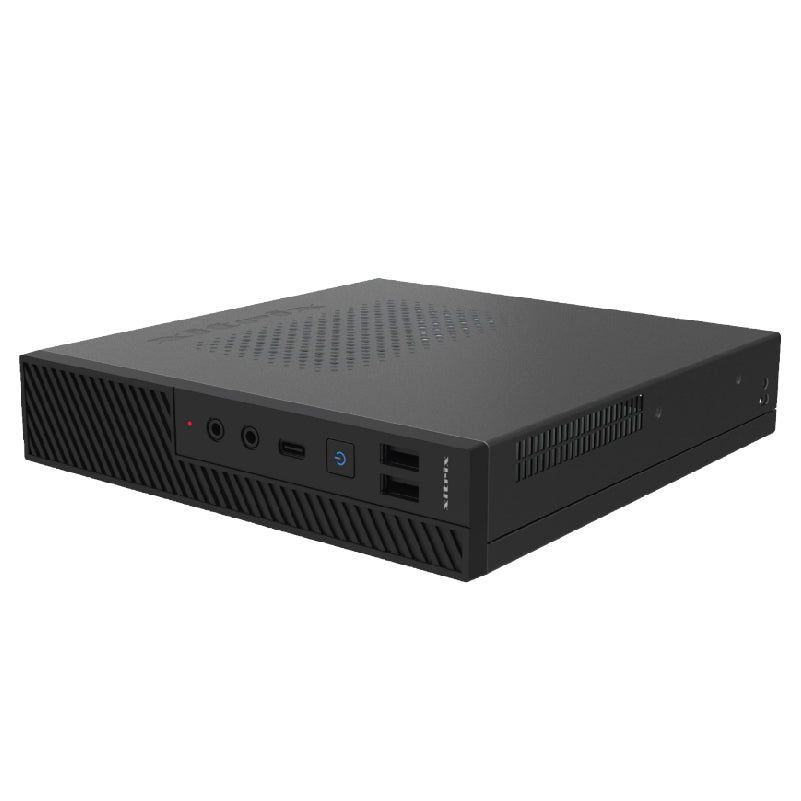

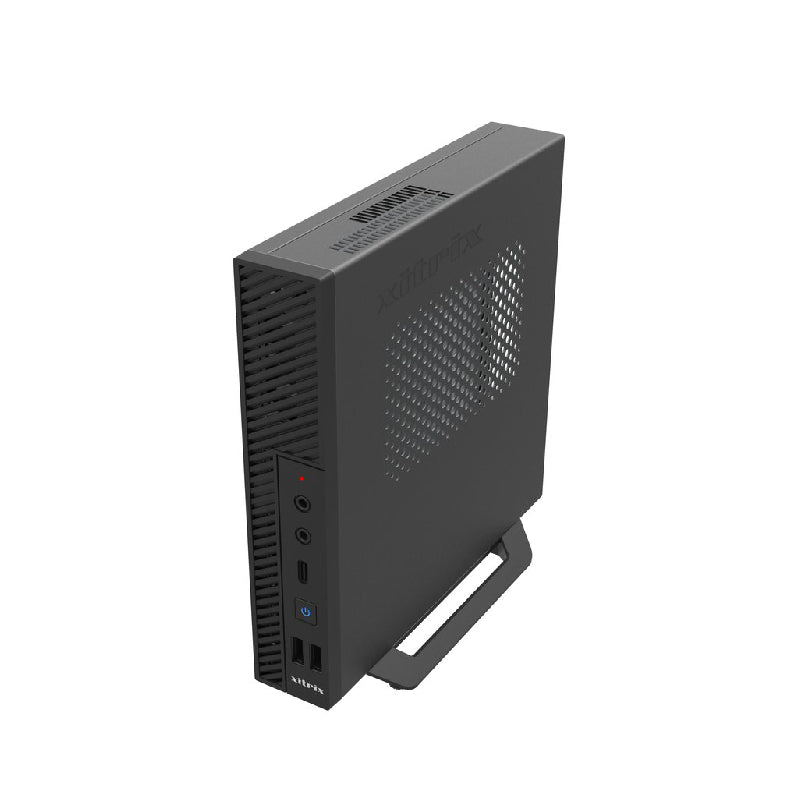

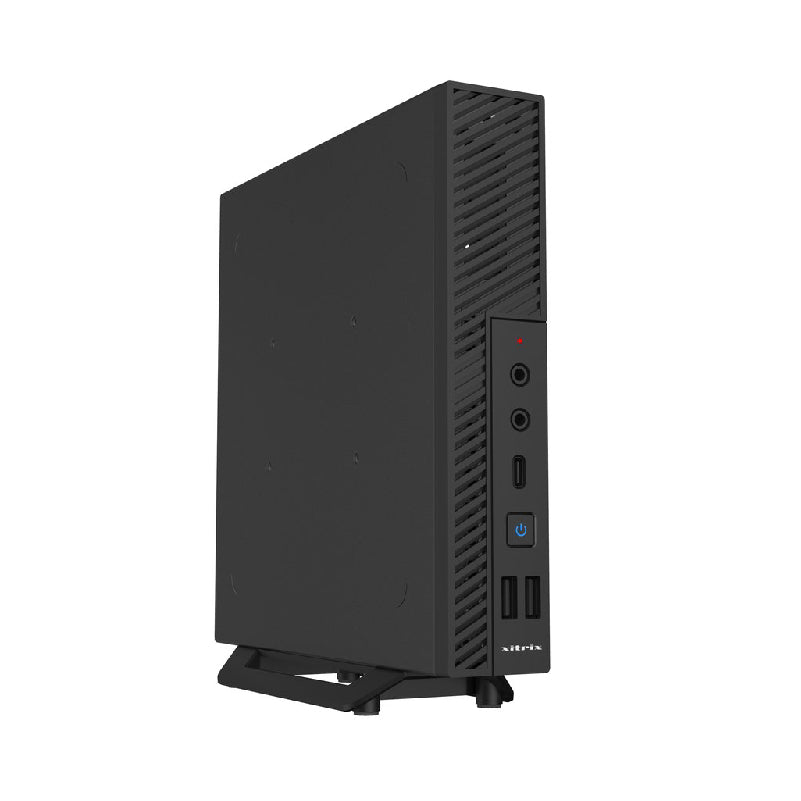

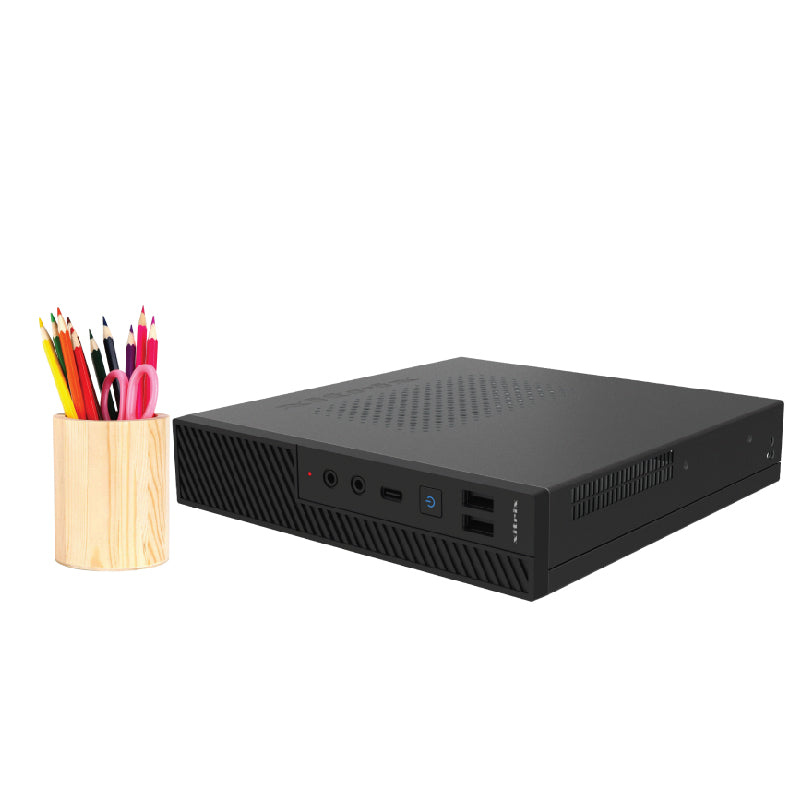

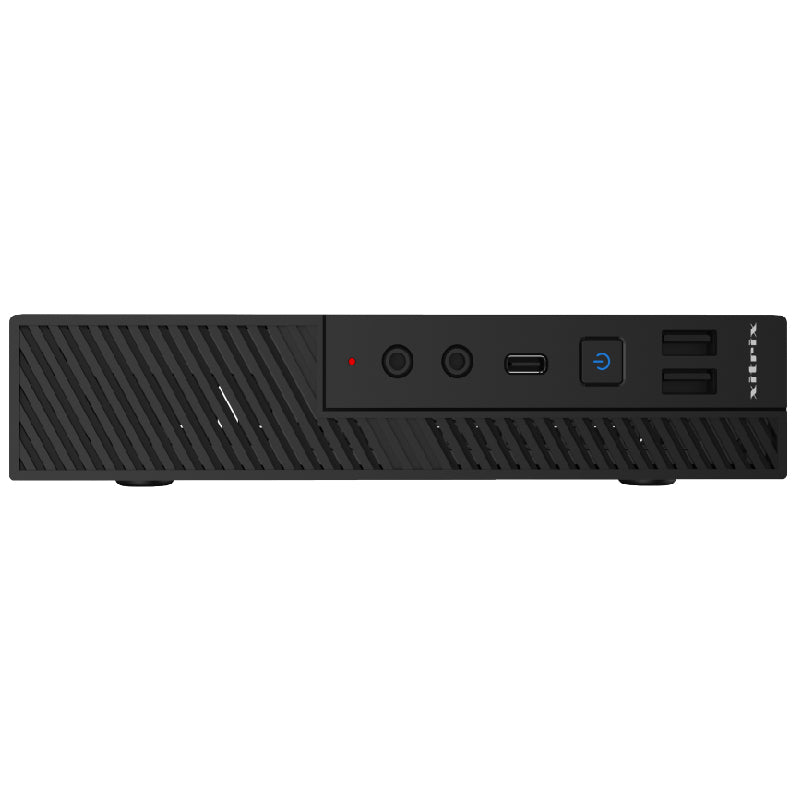

DeskFrame™ E300 Micro

• Support 10th Gen Intel® Core™ Series Processor
• Up to 32GB DDR4 System Memory
• Up to 5TB Integrated Storage or 4TB Solid State Drive & 1TB M.2 Storage
• Wireless AC, with Bluetooth Module, Gigabit LAN
• 1 Liter Micro Chassis
• Microsoft Windows 10 Operating System


Processors

Support for 10th Gen Intel® Core™ i3, i5 and i7 processor series in an LGA1150 socket
Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor

Core Chipset

Intel® H410 Express Chipset or Intel® B460 Express Chipset

Operating System

Genuine 64bit Microsoft® Windows® 10; Microsoft® Windows™ 10 Professional

System Memory

Two DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for up to DDR4 2933 , 2666, 2400 MHz  ; Support for up to 32 GB of system memory

Graphics

Integrated Intel® HD graphics engine

Hard Drive

Up to 5TB Serial ATA 6Gb/s Hard Drive
Up to 4TB SATA 6Gb/s SSD Solid State Drive

Up to 1TB M.2 2280 Solid State Drive

Audio

Intel® High Definition Audio (Intel® HD Audio); Built in Speaker Module

Peripheral Interfaces

Two Super Speed USB 3.0 front and Four USB 3.0 Rear ports
VGA Port and HDMI Port; Audio Ports, Gigabit Network Port, Power Adapter Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display (Separate Purchase)

Slots

2 x M.2 Slot
1st for WLAN Combo M.2 2230 Card with PCIe / USB / CNVi interface (E key)
2nd for M key Type 2242/2260/2280 connector for SATA SSD OR NVME SSD & Optane Memory

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller
Intel® Dual Band Wireless-AC 3168 with Dual Mode Bluetooth®4.2 BLE

Chassis Type

Xitrix DeskFrame 1L Tool Free Micro Chassis

Pre-installed

Microsoft Office 2019 30 Days Trial , Free Factory Installed Microsoft Security Essentials

Accessories

Vesa Mounting Kit
Optional Locking slot

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
  Optional 3 Years Next Business Day on-site
