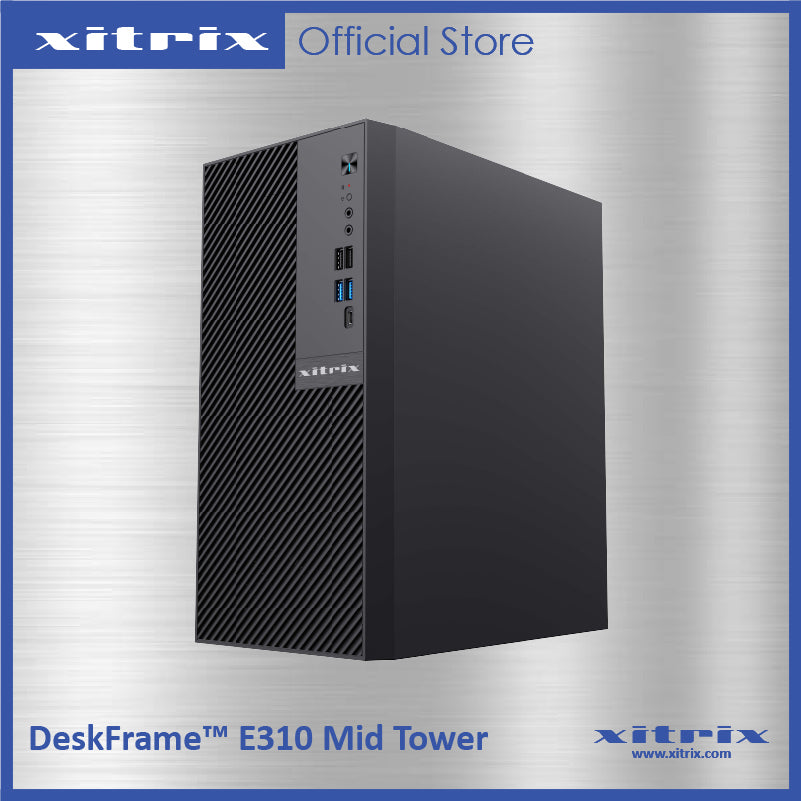

DeskFrame™ E310 Mid Tower

• Support 13th Gen Intel® Core™ Series Processor
• Up to 64GB DDR4 System Memory
• Supports Dual Drive configuration
• Up to 850 Watts Power Supply; Up to up to 320mm GPU
• Energy Star Certified

Processors

Support for 13th Gen Intel® Core™ i3, i5 and i7 processor series

Support for 12th Gen Intel® Core™ i3, i5 and i7 processor series

Supports Intel® Celeron™ Processor and Intel® Pentium™ Processor

Core Chipset

Intel® H610 Express Chipset

Intel® B760 Express Chipset

Operating System

Supports Microsoft Windows 11 Home and Professional; 64 bit

System Memory

DDR4 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to DDR4 2666/2933/3200 MHz  ; Support for up to 128 GB of system memory

Graphics

Integrated Intel® HD graphics engine

Optional 2GB nVidia GeForce GT710/GT730 / 4GB GT730 Discrete Graphic Card

Up to nVidia RTX4070 12GB GDDR6X / 21 Gbps / 192-bit Discrete Graphic Card

up to 320mm GPU / Video Card Length

Hard Drive

Up to 18TB Serial ATA 6Gb/s Hard Drive

Up to 4TB M.2 NVME SSD

Up to 4TB SATA 6Gb/s SSD Solid State Drive

Supports Triple Drive Configuration ( 1x 3.5inch and 2 x 2.5inch)

Media Storage

Optional USB 8x DVD Writer Drive; Optional Media Card Reader

Audio

Intel® High Definition Audio (Intel® HD Audio)

Peripheral Interfaces

Front Ports: Two Super Speed USB 3.0 front, 1x Audio Combo Jack Ports, 1x Type C Port

Rear Ports: 2 X USB 3.2 Gen 2x1 Type A port(s), 2 X USB2.0 port(s), 2x PS2 Ports, 3 Audio Jack Ports (Line Out/Line In/Mic In), 1 x HDMI 2.0 Port, 1 x VGA Port, 1 x Display Port, 1 x RJ45 Port

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 4.0 slot(s); 1 X PCI Express X 1 Gen 3.0 slot(s); 1 X M.2 2242/2280 Storage Slot, 1 x M.2 2230 Slot for Wifi; up to 320mm GPU / Video Card Length

LAN Support

(10/100/1000 Mb/s) LAN subsystem Gigabit Ethernet Controller

Optional Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + Bluetooth 5.2

Chassis Type

Dimension

Power Supply

Xitrix DeskFrame Mid Tower Tool Free All Metal Chassis; Optional Internal Chassis Audio Speaker

(L)343*(W)173*(H)353mm

500Watts High Efficiency 80Plus Power Supply; Optional 850Watts High Efficiency 80Plus Power Supply

Accessories

Xitrix Ergonomic Design USB Business Keyboard and Mouse with Mouse Pad

Standard Warranty and Service Offerings

Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service

Optional 3 Years Next Business Day on-site

• Service Offerings 3-Year Limited Parts Warranty & Technical Support Policy; 1-Year Next Business Day On-site Service
  Optional 3 Years Next Business Day on-site
