Xitrix® GL1 (H510) Gaming PC

Xitrix GL-1 Gaming PC (H510)

• Support 11th Gen Intel® Core™ Series Processor
• Intel 510 Chipset Motherboard
• Up to 64GB DDR4 RGB Memory
• Supports Up to RTX-30 Series Discrete Graphic Cards
• Mid Tower Chassis

Processors

Support for 11th Intel® Core™ i5, i7 and i9 processor series

Support for 10th Intel® Core™ i5, i7 and i9 processor series

Core Chipset

Intel® H510 Express Chipset

Operating System

Genuine 64bit Microsoft® Windows® 10; Microsoft® Windows™ 10 Professional

System Memory

Two DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology

Support for up to 64GB of system memory; 2666MHz / 2933MHz / 3200MHz

Graphics

Integrated Intel® HD graphics engine

Supports GTX 10, 16 and 30 Series , AMD RX 560 4GB Graphic Cards

Hard Drive

Up to 14TB Serial ATA 6Gb/s Hard Drive ( 3.5 inch)

Up to 2TB SATA 6Gb/s SSD Solid State Drive (2.5inch)

Up to 2TB M.2 2280 Solid State Drive

6 x SATA3 6.0 Gb/s Connectors

Audio

 6-Channel HD audio CODEC

 Realtek ALC897 6-channel High Definition audio CODEC

Peripheral Interfaces

2 X Super Speed USB 3.0 front port;

1 X PS/2 combo connector

1 X Audio port (Line Out/Line In/Mic In)

1 X RJ-45 port

1 X HDMI port, 1 X D-Sub (VGA) port(s), 1 X Display port

2 X Rear USB 3.2 Gen 1x1 Type A port(s)

4 X Rear USB2.0 port(s)

Monitors

Choice of Xitrix® Branded Flat Panel LED Display

Slots

1 X PCI Express X16 Gen 4.0 slot(s)

1 X PCI Express X 1 Gen 3.0 slot(s)

1 x M.2 2280 Slot

LAN Support

Integrated 10/100/1000 Gigabit RJ45 LAN

Chassis Type

Dimension

Power Supply

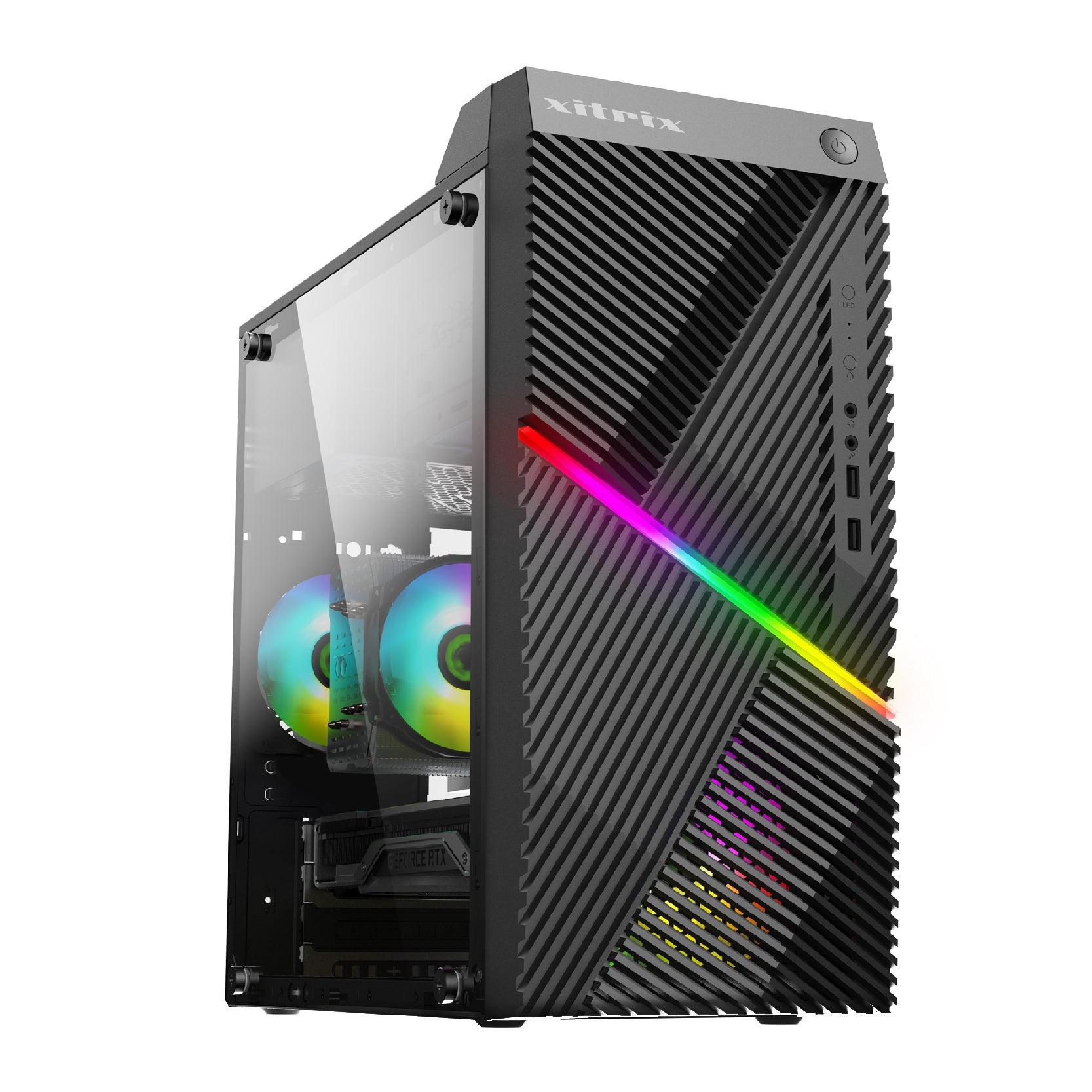

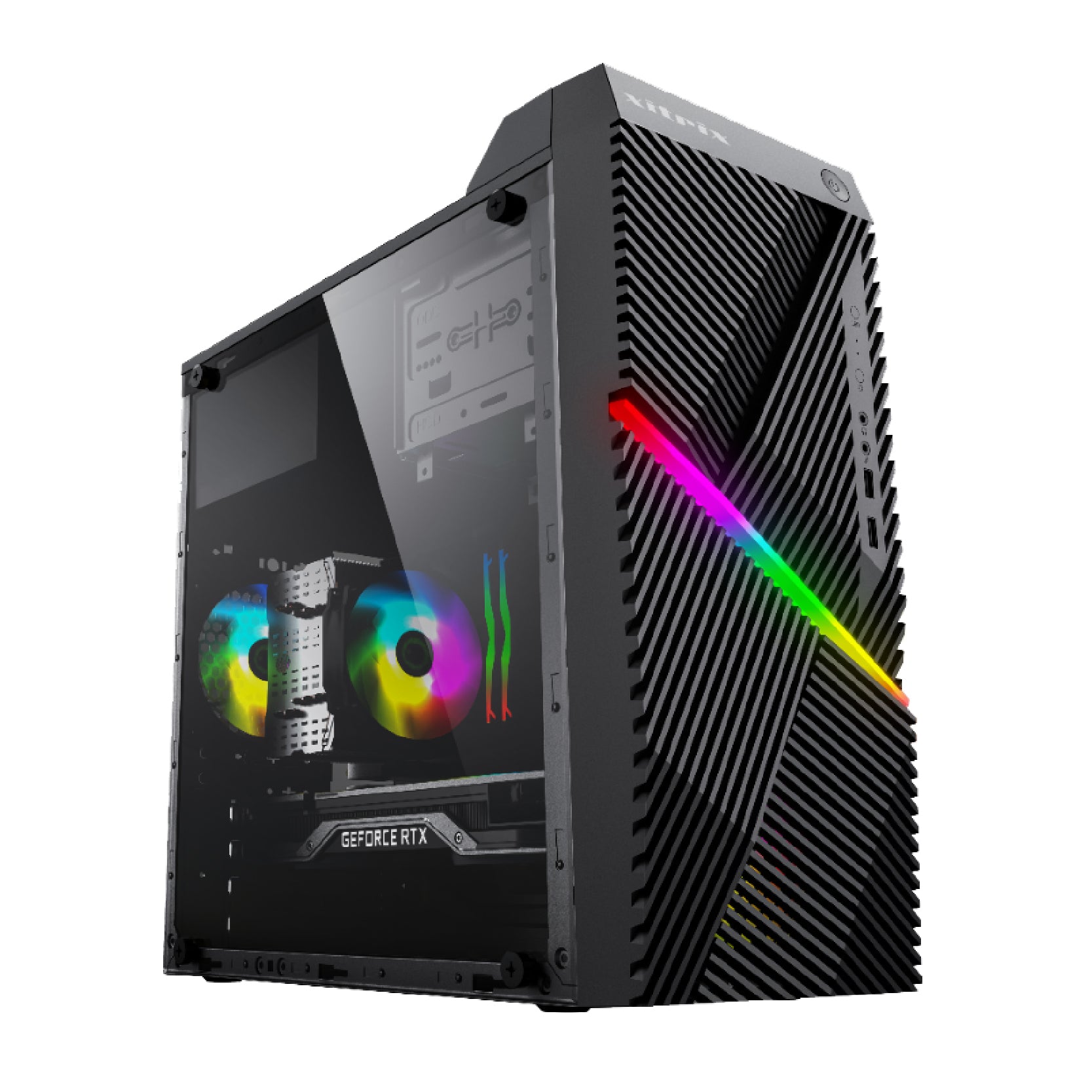

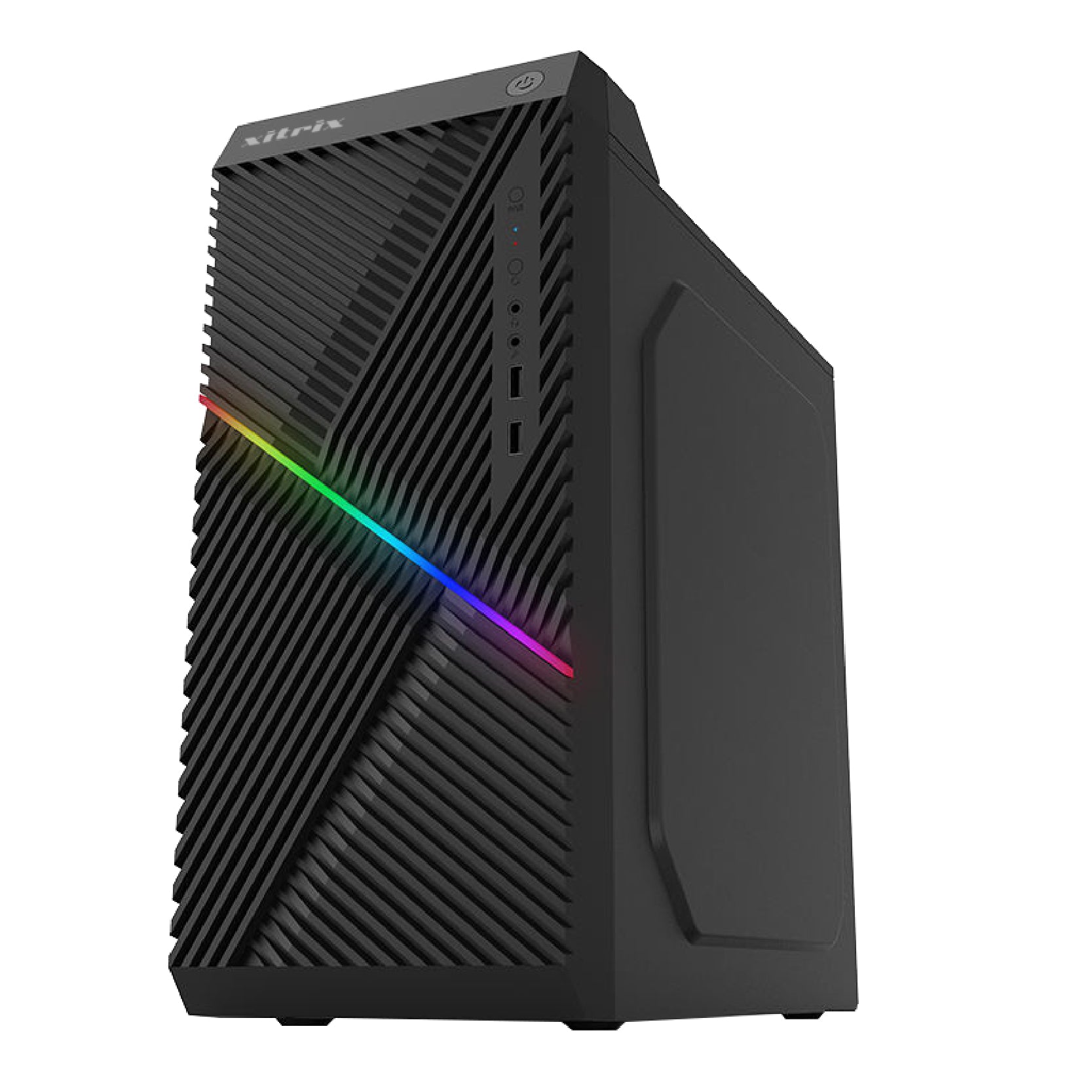

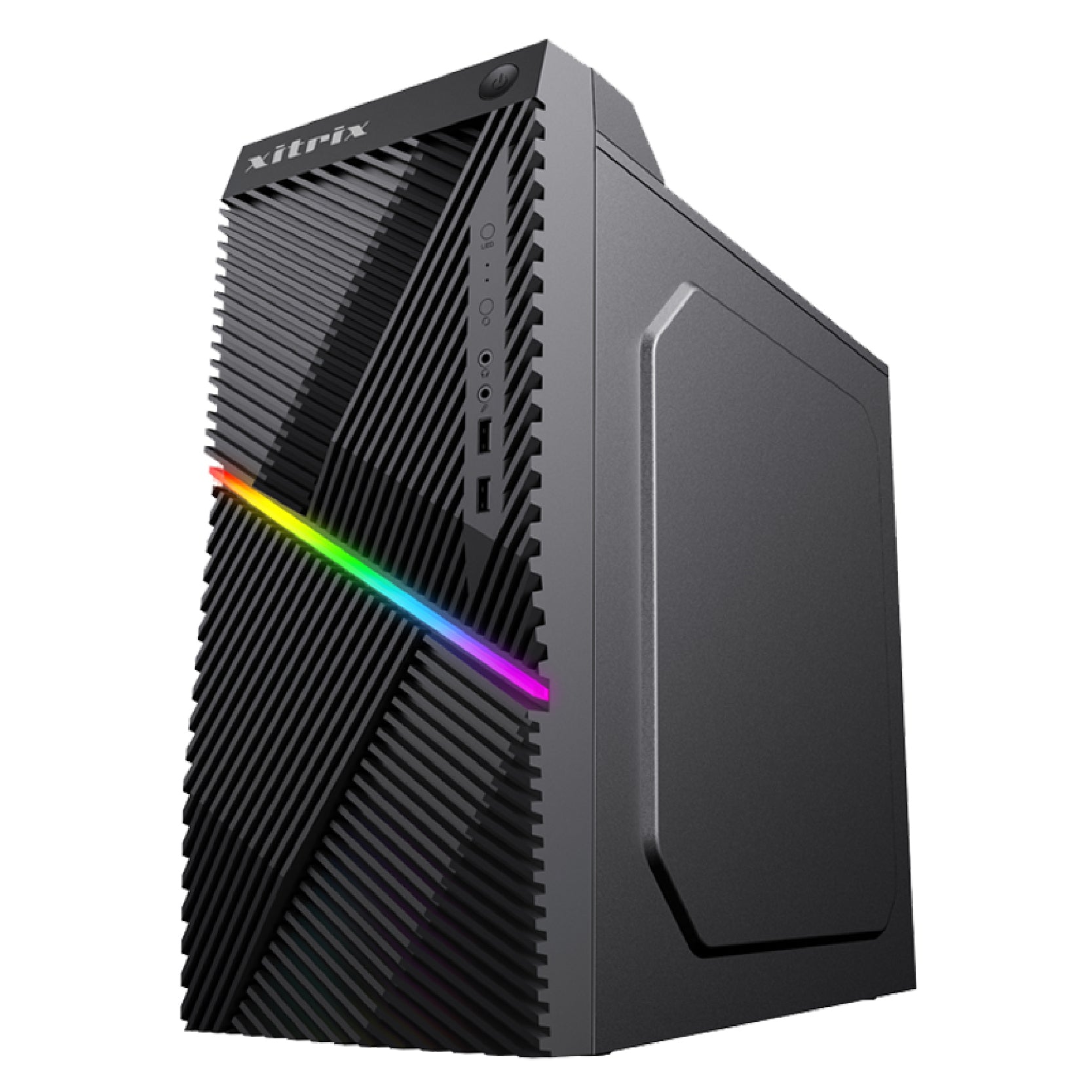

Xitrix DeskFrame G- Series Tool Free Gaming Chassis; clear window side panel

325*(W)170*(H)350mm

Up to 700 Watts Energy Efficient Power Supply

Standard Warranty

3-Year Limited Parts Warranty & Technical Support Policy

 Standard Warranty and Service Offerings

3 Years Warranty on Parts and Labor
