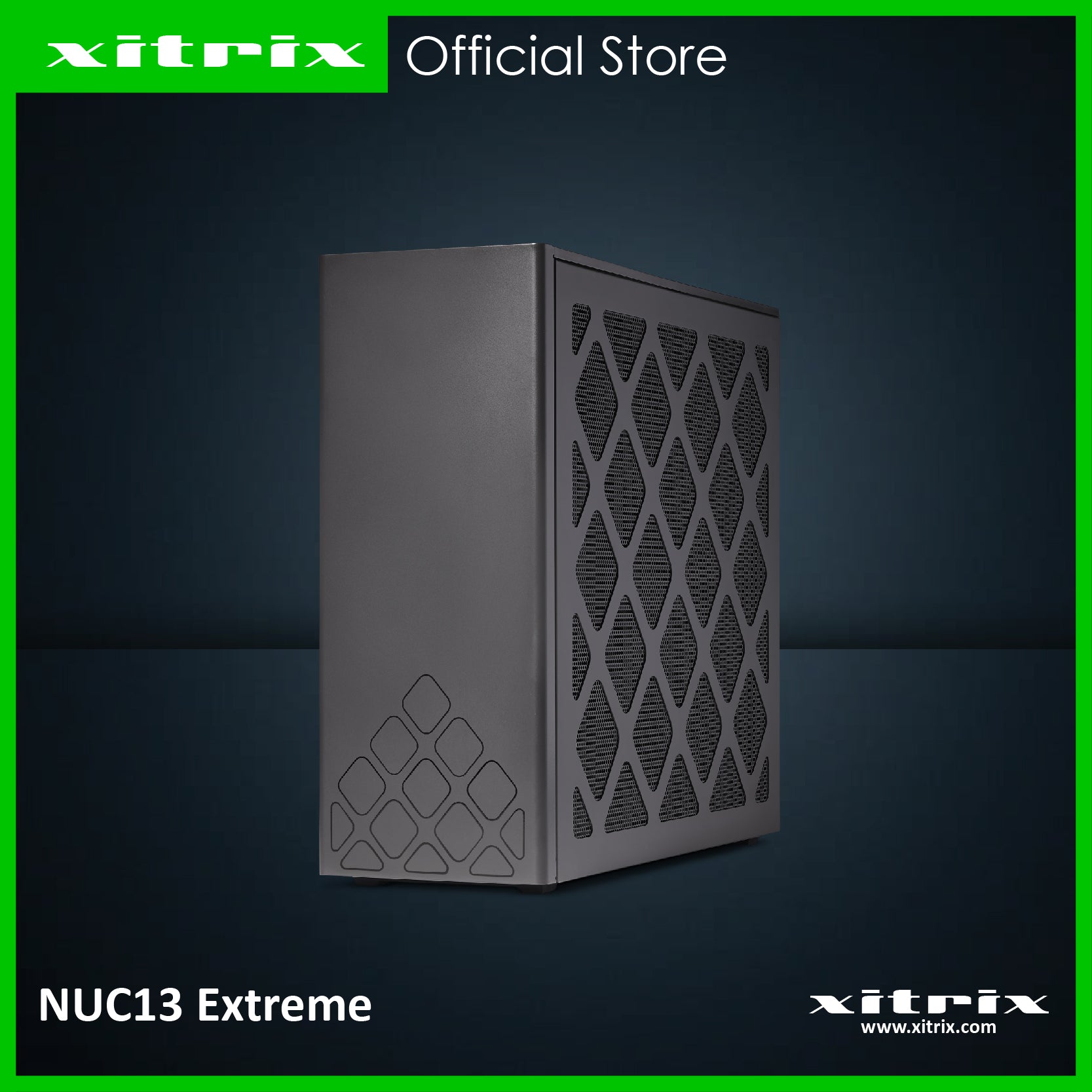

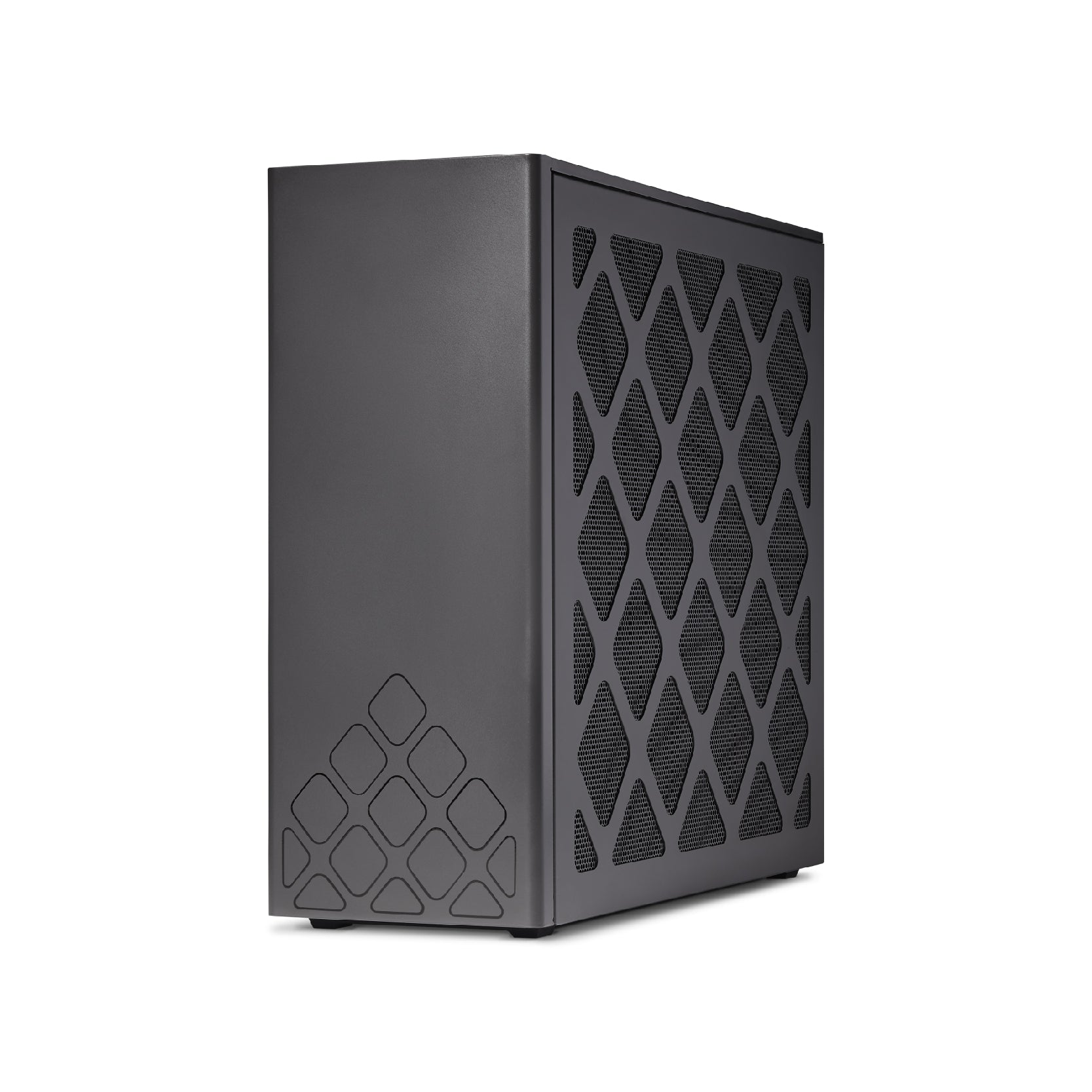

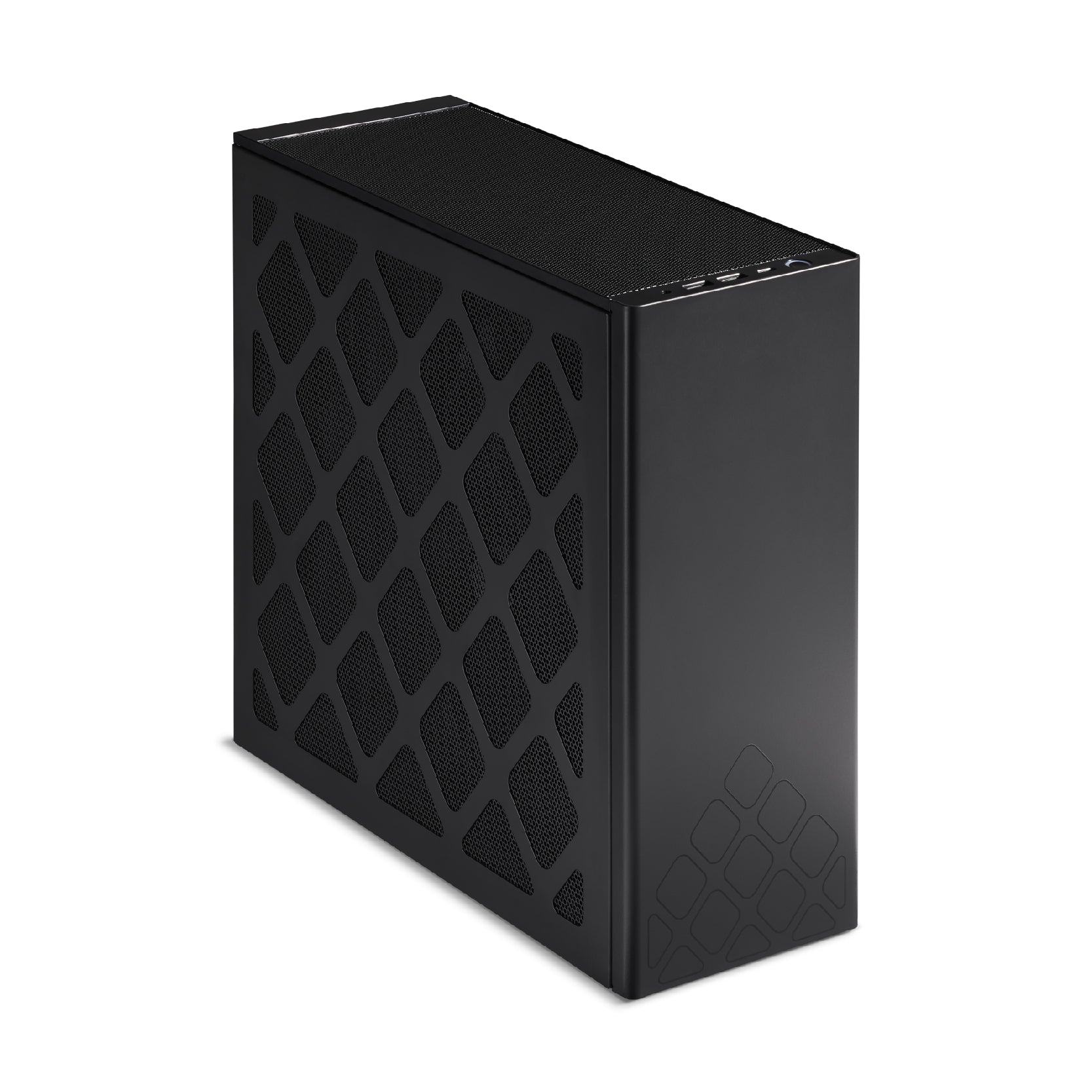

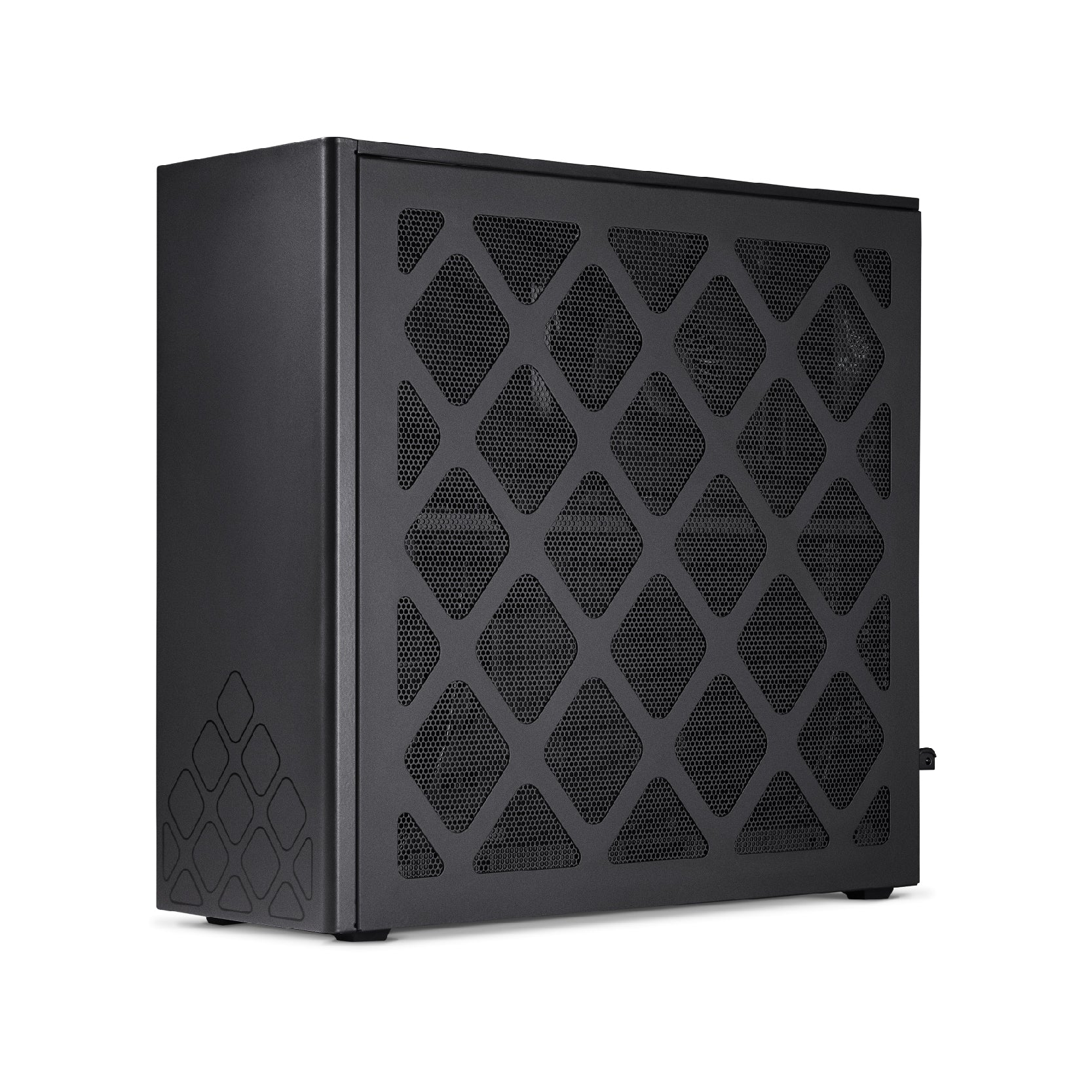

NUC13 Extreme

Kits

NUC13RNGi9

NUC13RNGi7

NUC13RNGi5

Processor

Intel® Core™ i9-13900K processor

Up to 5.8 GHz Intel® Thermal Velocity Boost,   125W unlocked, 24 cores (8P+16E),

32 threads, 36MB Intel® Smart Cache,  Intel® UHD Graphics 770

Intel® Core™ i7-13700K processor  Up to 5.4 GHz Intel® Turbo Boost Max

Technology 3.0,

125W unlocked, 16 cores (8P+8E),     24 threads, 30MB Intel® Smart Cache,  Intel® UHD Graphics 770

Intel® Core™ i5-13600K processor  Up to 5.1 GHz Max Turbo,

125W unlocked, 14 cores (6P+8E),     20 threads, 24MB Intel® Smart Cache,  Intel® UHD Graphics 770

Graphics

PCIe x16 Gen5 slot with PCIe 5.0 (12VHPWR) and

3x 6+2-pin PCIe power connectors, supports up to ~450W, 313mm length, triple-slot cards

Memory

Dual channel DDR5 SODIMMs, 64GB max

Storage

3x M.2 key M slots: 80mm CPU-attached PCIe x4 4.0 NVMe,

2x 42/80 PCH-attached PCIe 4.0 NVMe or SATA3 SSD, RAID-0 and RAID-1 capable

Ethernet

Intel® 2.5GbE (i226-V) / 10GbE (AQC113) LAN

Other features &  technologies

HDMI 2.1 TMDS compatible connector (up to 4K60)     |     2x Thunderbolt™ 4 / USB4 Type-C ports     |     Supports 3x 4K displays (Intel® UHD Graphics)  Intel® Wi-Fi 6E AX1690i, 802.11ax 2x2 ~3.0Gbps w/ 6GHz + Bluetooth® v5.2 (5.3 capable), dual external antennas

6x USB 3.2 Gen2 Type-A connectors (rear) | 2x USB 3.2 Gen1 Type-A (front) | 1x USB Gen2x2 Type-C (front)  3.5mm front stereo headset jack   | Up to 7.1 multichannel digital audio via HDMI or DisplayPort (Type-C) signals  Analog audio with discrete Mic-in, Line-in, Speaker-out, FP audio header

Operating system

Not included. Microsoft Windows 11 (logo’d), compatible with various Linux distros

Power

Full modular - 750W 80+ Gold SFX 12VO internal power supply with geo-specific C13 AC cords

Geo-specific  power cord

No cord, US, EU, UK, AU, CN

What’s needed

Memory, storage, operating system

• Service Offerings 3-Year Limited Parts Warranty Technical Support Policy; 1-Year Next Business Day On-site ServiceOptional 3 Years Next Business Day on-site
